FX Blaster Easy Assembly Kit

Thanks to the Easy Assembly Kit (EAK) it will be very easy to assembly your Arduino Fx Blaster.

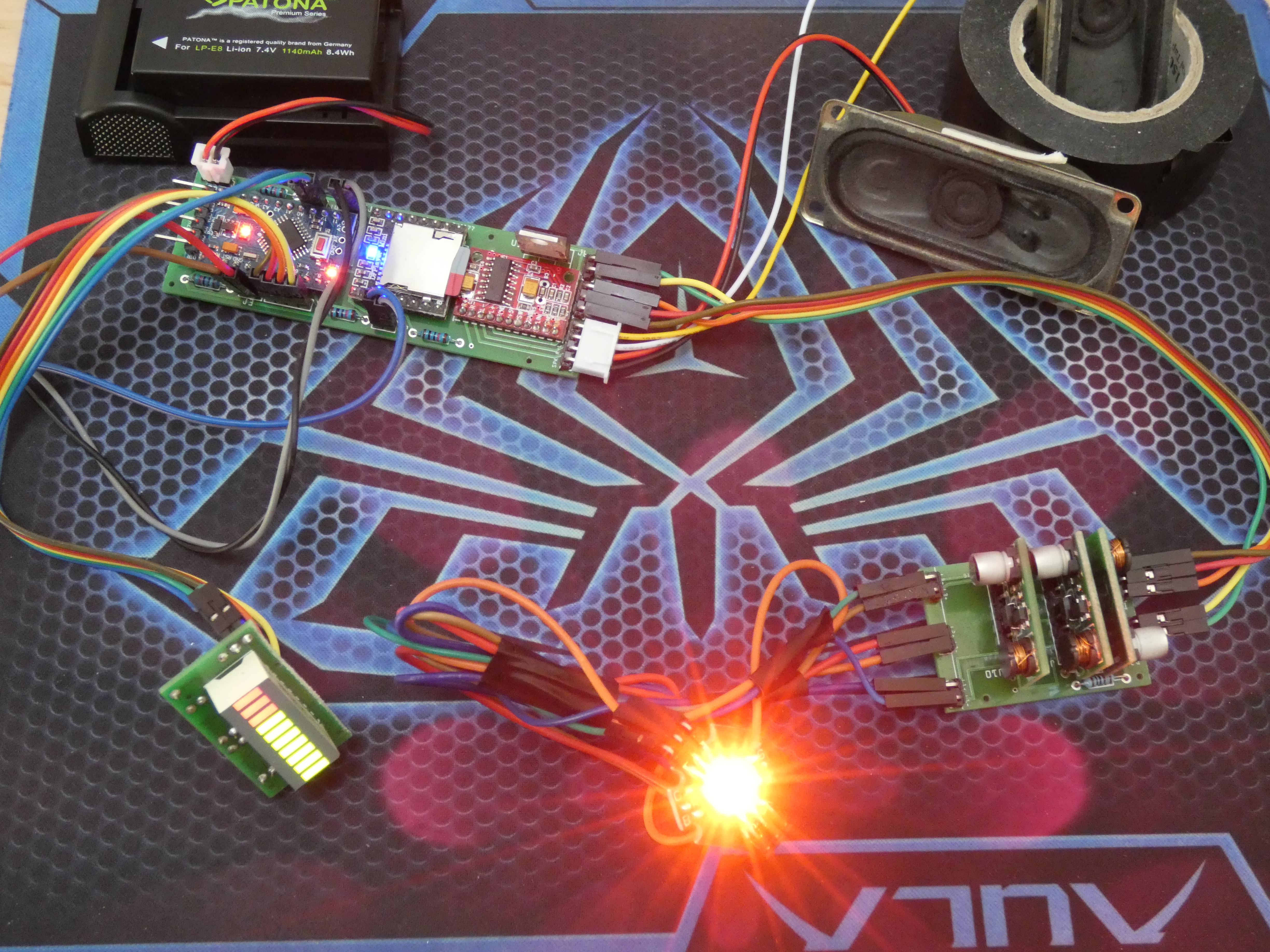

This the version 1.1 of the EAK board and everything works fine!

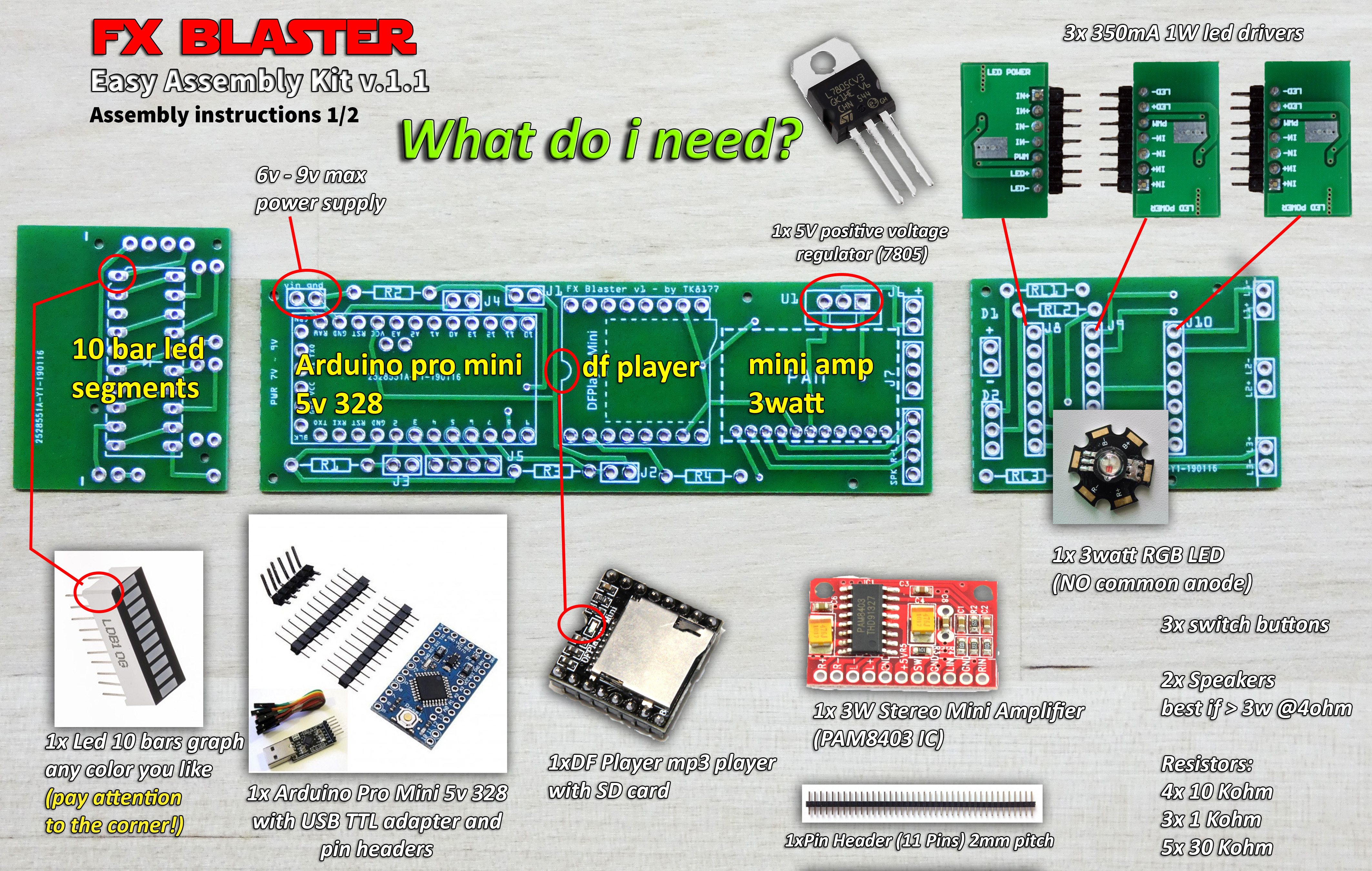

what i need to assembly my kit? click the image to find out!

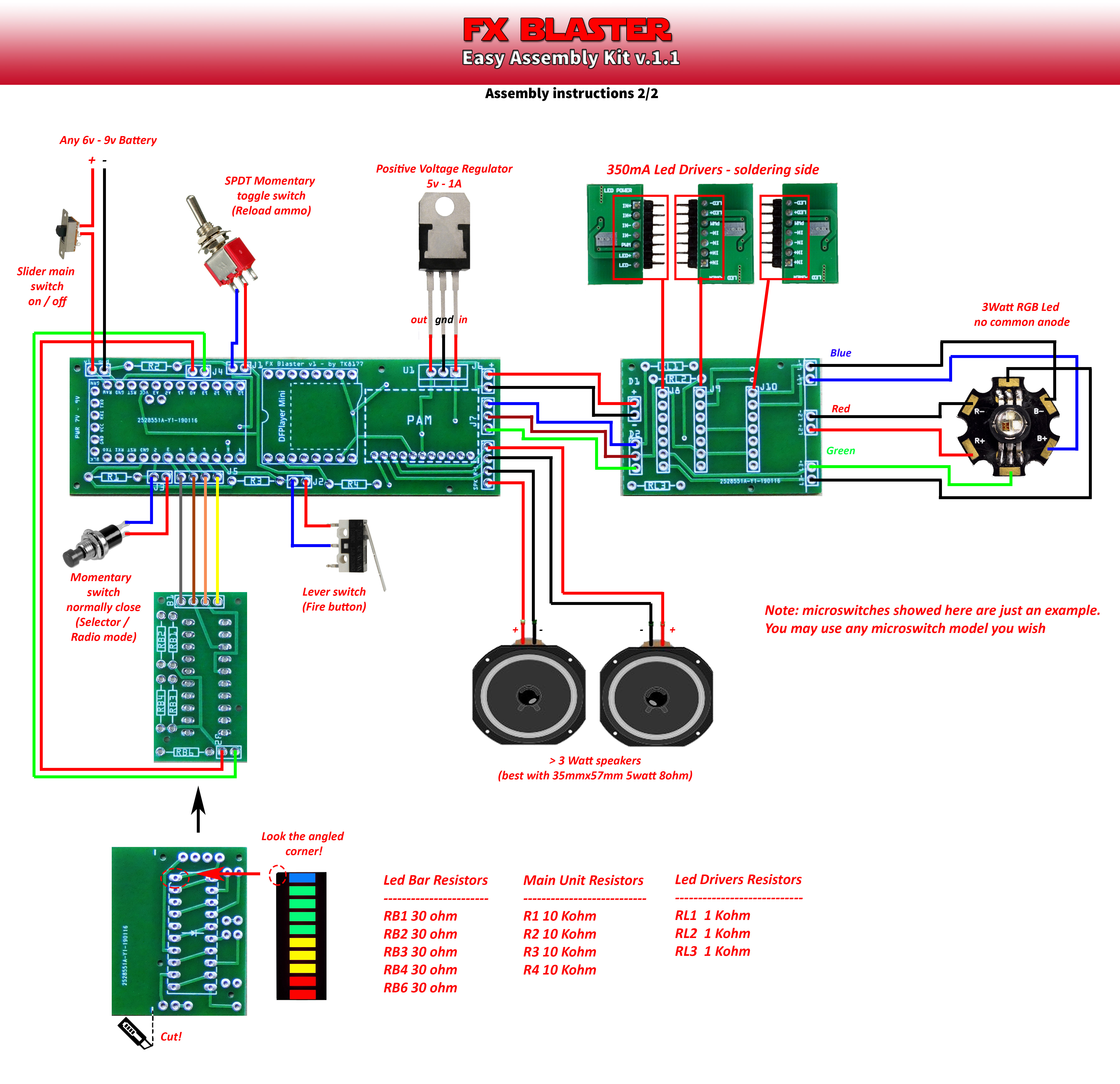

How i will assembly my EAK? just solder resistors, components and button and that’s it!  follow the picture:

Clicke the image to get full resolution!

follow the facebook page to get more information how to order it!


Arduino code for PCB board version available here: e11_ver_05_DFPlayer_PCB
